第 9 章 睡眠与唤醒（Chapter 9 Sleep and Wakeup）

Scheduling and locks help conceal the actions of one thread from another, but we also need abstractions that help threads intentionally interact. For example, the reader of a pipe in xv6 may need to wait for a writing process to produce data; a parent’s call to wait may need to wait for a child to exit; and a process reading the disk needs to wait for the disk hardware to finish the read. The xv6 kernel uses a mechanism called sleep and wakeup in these situations (and many others). Sleep allows a kernel thread to wait for some condition to be true; another thread or an interrupt handler can cause the condition to be true (typically by modifying some variable(s)) and then call wakeup to indicate that threads waiting for the condition should resume. Sleep and wakeup are often called sequence coordination or conditional synchronization mechanisms.

调度和锁有助于隐藏线程之间的相互作用，但我们也需要一些明确的原语来表达线程之间有意识的交互。例如，xv6 中管道的 “读端（reader）”（译者注：即从管道中读取数据的进程，后面的 “写端” 同理）可能需要等待管道的 “写端（writer）” 写入数据；父进程调用 wait 等待子进程退出；读取磁盘的进程需要等待磁盘硬件完成读取。xv6 内核针对这些情况（以及许多其他情况）引入了一种称为 “睡眠（sleep）” 和 “唤醒（wakeup）” 的机制。“睡眠” 允许内核线程等待特定条件变成真；另一个线程或者中断处理函数负责将条件变为真（典型地通过修改一些变量）然后调用 “唤醒” 来通知处于等待该条件的线程恢复运行。“睡眠” 和 “唤醒” 通常被称为 次序协调（sequence coordination） 或 条件同步（conditional synchronization） 机制。

Before proceeding, please read the functions sleep() and wakeup() in kernel/proc.c, and all of file kernel/pipe.c.

在继续之前，请阅读 kernel/proc.c 中的函数 sleep() 和 wakeup()，以及整个kernel/pipe.c 文件。

9.1 概述（Overview）

The sleep/wakeup interface looks like:

“睡眠” 和 “唤醒” 函数的声明如下：

void sleep(void *chan, struct spinlock *lk)
void wakeup(void *chan)

sleep() marks the calling process as SLEEPING (not RUNNABLE) and releases the CPU by context-switching to the scheduler, so that other processes can run. The chan argument is called the wait channel. wakeup(chan) wakes up all processes (if any) that have called sleep(chan, ...) with the same chan value. sleep and wakeup treat chan as an opaque 64-bit value; the only thing they do with it is compare for equality. The usual pattern is for callers to pass the address of some convenient object as the chan argument.

sleep() 将调用进程标记为 SLEEPING（而非 RUNNABLE），并通过上下文切换到调度程序释放 CPU，以便其他进程可以运行。参数 chan 称为 等待通道（wait channel）。wakeup(chan) 会唤醒所有使用相同 chan 值调用 sleep(chan, ...) 的进程（如果没有则什么也不做）。sleep 和 wakeup 并不关心 chan 具体是什么，对于它们来说 chan 只是一个64 位的值；对 chan 的唯一处理操作是比较其相等性。通常情况下调用者会将某个对象的地址作为实参传入 chan。

Kernel code calls sleep to wait for some condition to become true. For example, the kernel code that reads from a pipe calls sleep if the pipe buffer is currently empty; the condition in this case is the pipe buffer becoming non-empty (due to another process writing to the pipe). sleep and wakeup do not know what the condition is: only the calling code knows. The usual pattern is for the caller to first check the condition, and call sleep if it is not true; code that later makes the condition true calls wakeup.

内核代码调用 sleep 来等待某些 条件 变为真。例如，如果当前管道的缓冲区为空，则从管道读取数据的内核代码会调用 sleep；在这种情况下，等待的条件是管道缓冲区变为非空（另一个进程会写入管道）。sleep 和 wakeup 并不关心条件是什么：只有调用代码知道。通常的模式是，调用者首先检查条件，如果条件不成立，则调用 sleep；之后使条件成立的代码会调用 wakeup。

Here’s a sketch of how the xv6 kernel pipe code uses sleep and wakeup:

下面是 xv6 内核中实现管道的代码使用 sleep 和 wakeup 的简单示例：

piperead(pipe) {
  acquire(&pipe->lock);
  while(there’s no data in pipe->buffer){
    // ZZZ
    sleep(&pipe, &pipe->lock);
  }
  remove the data from the pipe;
  release(&pipe->lock);
}

pipewrite(pipe) {
  acquire(&pipe->lock);
  append data to pipe->buffer;
  wakeup(&pipe);
  release(&pipe->lock);
}

This code uses the address of the pipe data structure as the wait channel.

此代码使用管道结构体对象的地址作为等待通道。

What is the lk argument to sleep? In all uses of sleep/wakeup the condition involves shared data, used by both the thread that sleeps and the thread that calls wakeup, so there always turns out to be a lock that protects the condition. That lock is called the condition lock. In the pipe code above, both functions use the pipe and its buffer while holding the pipe lock, which in this case is also the condition lock. It’s a rule that any code that calls sleep or wakeup must hold the condition lock, and that the lock must be passed to sleep as the second argument.

sleep 的参数 lk 又是做什么用的呢？在所有 sleep/wakeup 的使用中，涉及的等待条件都和共享数据有关，这些数据被需要休眠的线程和调用 wakeup 的线程（译者注，负责唤醒睡眠线程）使用，因此总会需要有一个锁来保护这个等待条件。因此这个锁被称为 条件锁（condition lock）。在上面的管道实现代码中，两个函数都需要在持有管道锁的前提下使用管道及其缓冲区，这里的锁就是我们说的条件锁。因此处理原则是，任何调用 sleep 或 wakeup 的代码都必须持有条件锁，并且必须将该锁作为第二个参数传递给 sleep。

The reason that the condition lock must be held when sleep is called, and that it must be passed to sleep, is to prevent the possibility that another thread might call wakeup between the check of the condition and the call to sleep. A call to wakeup at that point would find no sleeping process to wake up; the wakeup would simply return. But then the call to sleep might never wake up, since the wakeup intended for it has already happened. This undesirable situation is called a lost wake-up.

之所以在调用 sleep 时必须持有条件锁，并且必须将锁传递给 sleep，这是考虑到我们需要避免一种情况，就是在检查条件和调用 sleep 之间，另一个线程可能会调用 wakeup（译者注：简单来说，就是在调用 sleep 之前提前发生了 wakeup）。此时调用 wakeup 将找不到任何可唤醒的休眠进程；也就是说在这种情况下 wakeup 什么也做不了。这会导致 sleep 调用可能永远不会被唤醒，因为预期的 wakeup 已经发生（但什么也没有做）。对于这种我们不希望看到的情况我们将其称为 丢失唤醒（lost wake-up）。

In the pipe example above, the lost wake-up being avoided is the possibility that a thread on another CPU might call pipewrite at the point marked ZZZ, between piperead’s check of the condition and its call to sleep. The fact that piperead holds the pipe lock during the time between when it checks the condition and calls sleep prevents pipewrite from executing, and thus prevents a lost wake-up.

在上面的管道示例中，我们需要着力避免的丢失唤醒问题在于另一个 CPU 上的线程可能在标记为 ZZZ 的位置调用 pipewrite，该位置位于 piperead 检查条件和调用 sleep 之间。正如代码所示，piperead 在检查条件和调用 sleep 之间的时间段内确保持有了管道锁，从而阻止了 pipewrite 的执行，避免了丢失唤醒。

sleep() releases the condition lock so that the code calling wakeup() can proceed. sleep() also context-switches to the scheduler in order to let other threads run while it is waiting. The implementation performs these two steps in a way that is atomic (indivisible) with respect to wakeup(), to prevent lost wake-ups.

sleep() 中会释放条件锁，以便调用 wakeup() 的代码可以继续执行。sleep() 还会将上下文切换到调度器，以便在其（即调用 sleep 的线程）等待期间让其他线程运行。具体实现中以原子的（不可分割）的方式执行这两个步骤，从而避免了丢失唤醒情况的发生。

9.2 代码讲解：睡眠与唤醒（Code: Sleep and wakeup）

Xv6’s sleep (2703) and wakeup (2734) implement the interface used in the example above. The basic idea is to have sleep mark the current process as SLEEPING and then call sched to release the CPU; wakeup looks for a process sleeping on the given wait channel and marks it as RUNNABLE. Callers of sleep and wakeup can use any mutually convenient number as the channel. Xv6 often uses the address of a kernel data structure involved in the waiting.

xv6 的 sleep (2703) 和 wakeup (2734) 实现了上面最后一个示例中使用的接口。其基本思想是让 sleep 将当前进程标记为 SLEEPING，然后调用 sched 释放 CPU；wakeup 查找在给定 “等待通道” 上睡眠的进程，并将其状态切换为 RUNNABLE。sleep 和 wakeup 的调用者可以使用任何彼此方便的值作为通道。xv6 通常使用等待过程中涉及的内核数据结构的地址（译者注：譬如上面代码例子中的 &pipe）。

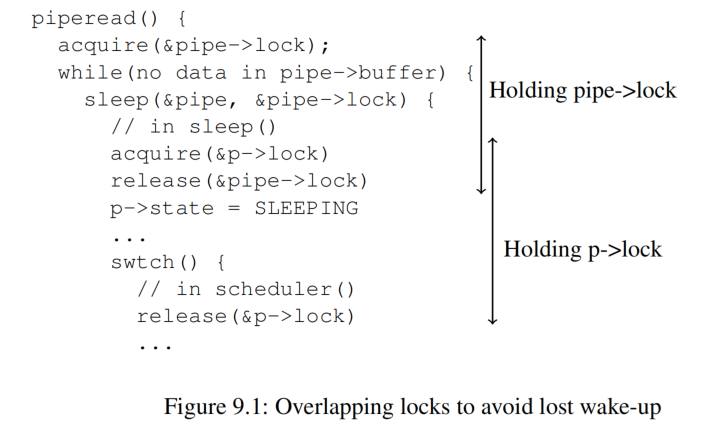

sleep acquires p->lock (2714) and only then releases the condition lock lk. The fact that sleep holds one or the other of these locks at all times is what prevents a concurrent wakeup (which must acquire and hold both) from acting, and thus prevents a lost wake-up. Now that sleep holds just p->lock, it can put the process to sleep by recording the wait channel, changing the process state to SLEEPING, and calling sched (2718-2721). In a moment it will be clear why it’s critical that p->lock is not released (by scheduler) until after the process is marked SLEEPING.

sleep 首先尝试获取 p->lock (kernel/proc.c:559)，只有拿到这把锁才会释放 lk。sleep 始终确保只会持有 p->lock 或者 lk 中的一个，这么做阻止了并发的 wakeup，从而避免了一次丢失唤醒（执行 wakeup 要求同时获取并持有这两把锁（译者注：参考上面的例子代码，lk（即 &pipe->lock）是在进入 wakeup 之前所获取，而对于 p->lock，参考 xv6 中 wakeup 函数的实现，是在 wakeup 函数中被获取）。（译者注，这里继续 sleep 函数的解释）sleep 此时只持有 p->lock，接下来它记录等待通道、再将进程状态更改为 SLEEPING，最后调用 sched 将进程进入睡眠状态（2718-2721）。稍后我们将解释为什么只有在进程被标记为 SLEEPING 之后，p->lock 才能被 scheduler 释放，这一点很重要。

At some point, a process will acquire the condition lock, set the condition that the sleeper is waiting for, and call wakeup(chan). It’s important that wakeup is called while holding the condition lock (Strictly speaking it is sufficient if wakeup merely follows the acquire (that is, one could call wakeup after the release).). wakeup loops over the process table (2734). It acquires the p->lock of each process it inspects. When wakeup finds a process in state SLEEPING with a matching chan, it changes that process’s state to RUNNABLE. The next time scheduler runs, it will see that the process is ready to be run.

总会在其他某个时间点上，另一个进程会获取 “条件锁（condition lock）”，设置睡眠进程正在等待的条件，然后调用 wakeup(chan)。重要的是，调用 wakeup 的前提是要先持有条件锁（严格来说，如果 wakeup 仅仅跟在 acquire 之后就足够了（也就是说，可以在 release 之后调用 wakeup）。）。wakeup 会循环遍历进程表 (2734)。它会尝试获取每个进程的 p->lock。当 wakeup 发现一个进程的状态处于 SLEEPING 且 chan 匹配时，它会将该进程的状态更改为 RUNNABLE。下次 scheduler 运行时，它就会发现该进程已准备好可以再次运行。

Why do the locking rules for sleep and wakeup ensure that a process that’s going to sleep won’t miss a concurrent wakeup? The going-to-sleep process holds either the condition lock or its own p->lock or both from before it checks the condition until after it has marked itself as SLEEPING; see Figure 9.1. The process calling wakeup needs to acquire both locks. The waker might acquire the locks first, which measn it will make the condition true before the consuming thread checks the condition, and the consuming thread won’t need to call sleep; or the waker’s acquire()s might have to wait until the consuming thread has completely finished going to sleep and releases the locks, in which case the waker will then see that the consuming thread is marked SLEEPING and will wake it up.

为什么 sleep 和 wakeup 函数中对锁的使用能够确保即将进入睡眠的进程不会错过一次并发的唤醒呢？这是因为即将进入睡眠态的进程在它检查条件 之前 直到被标记为 SLEEPING 之后，会一直持有 “条件锁” 或者自身的进程锁 p->lock，或者两者都持有；参考图 9.1。调用 wakeup 的进程需要获取 两个 锁。负责唤醒的线程可能先获取到锁，这意味着它会在消费线程检查条件之前使条件成立，对于这种情况消费线程将无需调用 sleep；另外一种情况就是负责唤醒的线程调用 acquire() 后可能需要一直等待，等到消费线程完全进入睡眠状态并释放锁，在这种情况下，负责唤醒的线程会发现消费线程被标记为 SLEEPING，并将其唤醒。

Sometimes multiple processes are sleeping on the same channel; for example, more than one process reading from a pipe. A single call to wakeup will wake them all up. One of them will run first and acquire the lock that sleep was called with, and (in the case of pipes) read whatever data is waiting. The other processes will find that, despite being woken up, there is no data to be read. From their point of view the wakeup was “spurious,” and they must sleep again. For this reason sleep is always called inside a loop that re-checks the condition, as in P above.

有时多个进程在同一个通道上休眠；例如，多个进程正在从管道读取数据。只需调用一次 wakeup 即可唤醒所有进程。这期间总有一个进程将首先运行并抢到调用 sleep 时传入的锁（译者注：即 sleep 函数的第二个参数 lk），然后（依然以管道为例）读取所有正在等待的数据。其他进程会发现，尽管自己被唤醒，但没有数据可读取。从它们的角度来看，这次唤醒是 “虚假的（spurious）”，它们必须再次休眠。因此，我们需要确保在一个反复检查条件的循环中调用 sleep。

No harm is done if two uses of sleep/wakeup accidentally choose the same channel: they will see spurious wakeups, but looping as described above will tolerate this problem. Much of the charm of sleep/wakeup is that it is both lightweight (no need to create special data structures to act as wait channels) and provides a layer of indirection (callers need not know which specific process they are interacting with).

如果睡眠和唤醒各执行了两次并且意外选择了同一个通道，也不会有什么问题：它们会检测到虚假的唤醒，如上所述的循环可以处理这个问题。睡眠和唤醒机制的最大魅力在于不仅其实现简单（无需创建特殊的数据结构来充当等待通道），又提供了一层封装（调用者无需知道它们正在与哪个特定进程交互）。

9.3 代码讲解：管道（Code: Pipes）

xv6’s pipes are an example of code that uses sleep and wakeup to synchronize producers and consumers is xv6’s implementation of pipes. We saw the interface for pipes in Chapter 1: bytes written to one end of a pipe are copied to an in-kernel buffer and then can be read from the other end of the pipe. Future chapters will examine the file descriptor support surrounding pipes, but let’s look now at the implementations of pipewrite and piperead.

xv6 中实现的 “管道（pipe）” 是一个使用 sleep 和 wakeup 来同步生产者和消费者例子。我们在第 1 章中了解了管道的接口定义：写入管道一端的字节会被复制到内核中的一块内存缓冲区中，然后可以被管道的另一端读取。后续章节将探讨如何通过文件描述符操作管道，现在我们先来看看 pipewrite 和 piperead 的实现。

Each pipe is represented by a struct pipe, which contains a lock and a data buffer. The fields nread and nwrite count the total number of bytes read from and written to the buffer. The buffer wraps around: the next byte written after buf[PIPESIZE-1] is buf[0]. The counts do not wrap. This convention lets the implementation distinguish a full buffer (nwrite == nread+PIPESIZE) from an empty buffer (nwrite == nread), but it means that indexing into the buffer must use buf[nread % PIPESIZE] instead of just buf[nread] (and similarly for nwrite).

每个管道由一个 struct pipe 的结构体表示，该结构体中包含一个 lock 和一个 data 缓冲区。nread 和 nwrite 字段分别用于计数从缓冲区读取和写入的字节总数。对缓冲区的写入会回绕：超出 buf[PIPESIZE-1] 写入的下一个字节会写入 buf[0]。计数不会回绕。基于以上约定我们可以区分缓冲区的状态是 “满（nwrite == nread+PIPESIZE）” 还是 “空（nwrite == nread）”，这也意味着当我们需要索引缓冲区中的某个字节时必须使用 buf[nread % PIPESIZE]，而不能使用 buf[nread]（对 nwrite 也是如此）。

Let’s suppose that calls to piperead and pipewrite happen simultaneously on two different CPUs. pipewrite (6679) begins by acquiring the pipe’s lock, which protects the counts, the data, and their associated invariants. piperead (6708) then tries to acquire the lock too, but cannot. It spins in acquire (1271) waiting for the lock. While piperead waits, pipewrite loops over the bytes being written (addr[0..n-1]), adding each to the pipe in turn (6697). During this loop, it could happen that the buffer fills (6690). In this case, pipewrite calls wakeup to alert any sleeping readers to the fact that there is data waiting in the buffer and then sleeps on &pi->nwrite to wait for a reader to take some bytes out of the buffer. sleep releases the pipe’s lock as part of putting pipewrite’s process to sleep.

假设对 piperead 和 pipewrite 的调用同时发生在两个不同的 CPU 上。而且假定 pipewrite (6679) 首先抢到管道的锁，该锁用于保护计数、数据及其相关的 invariant。piperead (6708) 随后尝试获取锁，但此时获取不成功。进入 acquire (1271) 后等待锁被释放。在 piperead 等待期间，pipewrite 循环遍历正在写入的字节 (addr[0..n-1])，并将每个字节依次加入管道的缓冲区 (6697)。在此循环期间，缓冲区可能会被填满 (6690)。在这种情况下，pipewrite 调用 wakeup 来提醒处于休眠状态的读端此时缓冲区中有数据在等待读取，然后 pipewrite 在 &pi->nwrite 上休眠，等待读端从缓冲区中取出一些字节。对 sleep 的调用在将运行 pipewrite 的进程进入休眠的同时会释放管道的锁。

piperead now acquires the pipe’s lock and enters its critical section: it finds that pi->nread != pi->nwrite (6715) (pipewrite went to sleep because pi->nwrite == pi->nread + PIPESIZE (6690)), so it falls through to the for loop, copies data out of the pipe (6722), and increments nread by the number of bytes copied. That much space in the buffer is now available for writing, so piperead calls wakeup (6729) to wake any sleeping writers before it returns. wakeup finds a process sleeping on &pi->nwrite, the process that was running pipewrite but stopped when the buffer filled. It marks that process as RUNNABLE.

piperead 现在获取了管道的锁并进入其临界区：它会发现 pi->nread != pi->nwrite (6715)（pipewrite 之所以进入睡眠状态正是因为 pi->nwrite == pi->nread + PIPESIZE (6690)），因此它进入 for 循环，将数据从管道的缓冲区往外复制 (6722)，并对 nread 增加已写出的字节数。此时说明缓冲区有足够的空间可供写入，因此 piperead 在其返回之前会调用 wakeup (6729)，唤醒所有睡眠中的写端进程。wakeup 会发现一个在 &pi->nwrite 上睡眠的进程而该进程正是前面运行 pipewrite 并在缓冲区填满后停止的那个。wakeup 随即将该进程标记为 RUNNABLE。

The pipe code uses separate wait channels for reader and writer (pi->nread and pi->nwrite); this might make the system more efficient in the unlikely event that there are lots of readers and writers waiting for the same pipe. The pipe code sleeps inside a loop checking the sleep condition; if there are multiple readers or writers, all but the first process to wake up will see the condition is still false and sleep again.

管道的代码为读取端和写入端维护单独的等待通道（pi->nread 和 pi->nwrite）；这对于存在多个读取端和写入端等待同一个管道的情况来说（虽然这种情况不太可能发生）可能会提高系统效率。piperead 和 pipewrite 中的代码将执行睡眠的操作包在一个检查睡眠条件的循环中；因此如果有多个读取端或写入端，除了第一个被唤醒的进程之外，其他所有（被唤醒的）进程都会发现条件仍然为假，并再次进入睡眠状态。

9.4 代码讲解：wait, exit 和 kill（Code: Wait, exit, and kill）

Please read the code for functions kwait(), kexit(), and kkill() in kernel/proc.c; these are the internal implementations of the corresponding system calls.

请阅读 kernel/proc.c 中函数 kwait()、kexit() 和 kkill() 的代码；这些是相应系统调用的内部实现。

sleep and wakeup can be used for many kinds of waiting. An interesting example, introduced in Chapter 1, is the interaction between a child’s exit and its parent’s wait. At the time of the child’s death, the parent may already be sleeping in wait, or may be doing something else; in the latter case, a subsequent call to wait must observe the child’s death, perhaps long after it calls exit. The way that xv6 records the child’s demise until wait observes it is for exit to put the caller into the ZOMBIE state, where it stays until the parent’s wait notices it, changes the child’s state to UNUSED, copies the child’s exit status, and returns the child’s process ID to the parent. If the parent exits before the child, the parent gives the child to the init process, which perpetually calls wait; thus every child has a parent to clean up after it. A challenge is to avoid races and deadlock between simultaneous parent wait and child exit, as well as simultaneous exit and exit.

sleep 和 wakeup 可用于多种等待的场景。第 1 章介绍过一个有趣的例子，即子进程的 exit 与其父进程的 wait 之间的交互。子进程退出时，父进程可能已经在 wait 中休眠，或者正在执行其他操作；在后一种情况下，后续对 wait 的调用必须观察到子进程已退出，这很可能发生在（子进程）调用 exit 很久之后。xv6 记录子进程结束的方式是，在 wait 观察到该结果之前，exit 会将调用者的状态设置为 ZOMBIE，该状态会一直保持到父进程调用 wait 发现它已退出，wait 会将子进程的状态更改为 UNUSED，复制子进程的退出状态，并将子进程的进程 ID 返回给父进程。如果父进程先于子进程退出，则父进程会将子进程托付给 init 进程，而后者会循环调用 wait；所以，每个子进程都会有一个父进程来负责回收它。存在的挑战是如何避免当父子进程同时调用 wait 和 exit 或者同时调用 exit 和 exit 时可能引起的竞争和死锁。

kwait, the kernel implementation for wait, starts by acquiring wait_lock (2503), which acts as the condition lock that helps ensure that kwait doesn’t miss a wakeup from an exiting child. Then kwait scans the process table. If it finds a child in ZOMBIE state, it frees that child’s resources and its proc structure, copies the child’s exit status to the address supplied to wait (if it is not 0), and returns the child’s process ID. If kwait finds children but none have exited, it calls sleep to wait for any of them to exit (2545), then scans again. kwait often holds two locks, wait_lock and some process’s pp->lock; the deadlock-avoiding order is first wait_lock and then pp->lock.

系统调用 wait 在内核中的实现函数 kwait 会首先尝试获取 wait_lock (2503) 这把锁，该锁充当条件锁，有助于确保 kwait 不会错过正在退出的子进程（译者注：在 kexit 中）对 wakeup 的调用。获取 wait_lock 后 kwait 会扫描进程表。如果它发现一个处于 ZOMBIE 状态的子进程，它会释放该子进程的资源及其 proc 结构，将子进程的退出状态复制到 wait 函数的参数传入的地址处（前提是该地址不为 0），并返回该子进程的进程 ID。如果 kwait 发现存在子进程但目前都还没有退出，那么它会调用 sleep 进入等待 (2545)，直到任何一个子进程退出而被唤醒，然后 kwait 会进入下一个循环再次扫描进程表 (译者注：此时再次扫描必然能够发现有子进程状态变为 ZOMBIE)。kwait 通常持有两把锁，wait_lock 和某个进程的 pp->lock；避免死锁的顺序是确保先获取 wait_lock，后获取 pp->lock。

kexit (2454) records the exit status, frees some resources, calls reparent to give any children to the init process, wakes up the parent in case it is in wait, marks the caller as a zombie, and permanently yields the CPU. kexit holds both wait_lock and p->lock during this sequence. It holds wait_lock because it’s the condition lock for the wakeup(p->parent), preventing a parent in wait from losing the wakeup. kexit must hold p->lock for this sequence also, to prevent a parent in wait from seeing that the child is in state ZOMBIE before the child has finally called swtch. kexit acquires these locks in the same order as kwait to avoid deadlock.

kexit (2454) 会记录退出状态，释放一些资源，调用 reparent 将其所有的子进程委托给 init 进程，唤醒有可能在 wait 中等待的父进程，将调用者本身标记为 “僵尸（zombie）” 进程，并永久交出 CPU。kexit 在上述执行过程中同时持有 wait_lock 和 p->lock。它持有 wait_lock 是因为它是 wakeup(p->parent) 的条件锁，其目的是为了防止处于 wait 状态的父进程错过唤醒通知。kexit 也必须在上述执行过程中持有 p->lock，以防止在 wait 中等待的父进程在子进程最终调用 swtch 之前就看到子进程已处于 ZOMBIE 状态。另外，kexit 也需要按照与 kwait 相同的顺序获取这些锁以避免死锁。

It may look incorrect for kexit to wake up the parent before setting its state to ZOMBIE, but that is safe: although wakeup may cause the parent to run, the loop in the parent’s kwait cannot examine the child until the child’s p->lock is released by scheduler, so kwait can’t look at the exiting process until well after kexit has set its state to ZOMBIE (2486).

在将子进程的状态设置为 ZOMBIE 之前，kexit 会唤醒其父进程，这看上去似乎不太正确，但这是安全的：尽管 wakeup 可能唤醒（译者注：在 wait 中睡眠的）父进程，但在 kwait 的循环中，在子进程的 p->lock 被 scheduler 释放之前是无法查看子进程的状态的，相反，kwait 会一直阻塞，直到 kexit 将子进程的状态设置为 ZOMBIE（2486）之后才能继续并看到已退出的进程（译者注：严格地说这个时间点是在 kexit 中调用 sched 后，上下文切换到调度线程，并在 scheduler 中释放 p->lock 之后）。

While exit allows a process to terminate itself, the kill system call (2754) lets one process request that another terminate. It would be too complex for kill to directly destroy the victim process, since the victim might be executing on another CPU, perhaps in the middle of a sensitive sequence of updates to kernel data structures. Thus kkill does very little: it just sets the victim’s p->killed and, if it is sleeping, wakes it up. Eventually the victim will enter or leave the kernel, at which point code in usertrap will call kexit if p->killed is set (it checks by calling killed (2783)). If the victim is running in user space, it will see that it has been killed the next time it enters the kernel by making a system call or because the timer (or some other device) interrupts.

exit 用于一个进程终止自己，系统调用 kill (2754) 则用于一个进程请求终止另一个进程。希望通过 kill 直接销毁某个进程（该进程我们形象地称之为 受害者（victim））可没有那么简单，因为 victim 进程可能正在另一个 CPU 上执行，甚至可能正在对内核数据结构进行一系列敏感的更新。因此，kkill 函数中的代码并不会做实际的销毁工作：它只是简单地设置 victim 进程的 p->killed 标志位，如果 victim 进程处于休眠状态，则将其唤醒。最终，victim 进程会进入或离开内核态，此时 usertrap 中的代码会检查 p->killed 是否已设置（通过调用 killed (2783) ），如果被设置了则调用 kexit（完成实际的销毁）。如果 victim 进程此时正在用户空间运行，它很快就会通过系统调用或因为定时器（或其他外设）中断再一次进入内核态并看到它已经被杀死了。

If the victim process is in sleep, kkill’s call to wakeup will cause the victim to return from sleep. This is potentially dangerous because the condition being waited for for may not be true. However, xv6 calls to sleep are always wrapped in a while loop that re-tests the condition after sleep returns. Some calls to sleep also test p->killed in the loop, and abandon the current activity if it is set. This is only done when such abandonment would be correct. For example, the pipe read and write code (6686) returns if the killed flag is set; eventually the code will return back to trap, which will again check p->killed and exit.

当 victim 进程阻塞在 sleep 中时，kkill 通过调用 wakeup 将导致 victim 进程从 sleep 函数返回。但这么做存在潜在的危险，因为等待的条件可能并不成立。但所幸的是，由于 xv6 总是用一个 while 循环包住了对 sleep 的调用，该循环会在 sleep 返回后重新测试条件。一些对 sleep 的调用还会在循环中测试 p->killed 这个条件，如果设置了该标志，则放弃当前活动。只有确保这种放弃是正确的才会执行此操作。例如，如果设置了 killed 标志，管道的读写代码 (6686) 就会返回；最终代码将返回到 trap，并再次检查 p->killed，如果条件满足则调用 exit 结束该 victim 进程。

Some xv6 sleep loops do not check p->killed because the code is in the middle of a multi-step system call that should be atomicc (i.e., would be incorrect if abandoned midway through). The virtio driver (7688) is an example: it does not check p->killed because a disk operation may be one of a set of writes that are all needed in order for the file system to be left in a correct state. A process that is killed while waiting for disk I/O won’t exit until it completes the current system call and usertrap sees the killed flag.

xv6 中有些调用 sleep 循环并没有检查 p->killed，因为这些代码正处于一个多步骤系统调用过程的中间阶段，而这些调用是不能被打断的（即如果中途放弃，那就会产生问题）。virtio 驱动程序 (7688) 就是一个例子：它不会检查 p->killed，因为磁盘操作作为一系列写操作的组成部分，如果中间（被 kill）打断将有可能使得文件系统处于一种不正确的状态。所以如果当一个进程在等待磁盘 I/O 时被杀死，则我们会一直等到该进程完成当前系统调用后，usertrap 会再次检查 killed 标志，如果被设置则调用 exit 结束该 victim 进程。

9.5 进程锁（Process Locking）

The lock associated with each process (p->lock) is the most complex lock in xv6. A simple way to think about p->lock is that it must be held while reading or writing any of the following struct proc fields: p->state, p->chan, p->killed, p->xstate, and p->pid. These fields can be used by other processes, or by scheduler threads on other CPUs, so it’s natural that they must be protected by a lock.

与每个进程关联的锁（p->lock）是 xv6 中最复杂的锁。一种对 p->lock 的简单理解是，在对 struct proc 读取或写入以下任何字段时必须持有该锁，它们包括：p->state、p->chan、p->killed、p->xstate 和 p->pid。这些字段可能被其他进程或其他 CPU 上的 scheduler 线程访问，因此它们必须受到锁的保护也就不足为奇了。

However, most uses of p->lock are protecting higher-level invariants of xv6’s process data structures and algorithms. Here’s the full set of things that p->lock does:

然而，p->lock 的大多数用途是用于保护 xv6 中处于更高层次的进程数据结构和处理逻辑的 “不变性（invariant）”。以下是对 p->lock 功能的总结：

• Along with p->state, it prevents races in allocating proc[] slots for new processes.
• It conceals a process from view while it is being created or destroyed.
• It prevents a parent’s wait from collecting a process that has set its state to ZOMBIE but has not yet yielded the CPU.
• It prevents another CPU’s scheduler from deciding to run a yielding process after it sets its state to RUNNABLE but before it finishes swtch.
• It ensures that only one CPU’s scheduler decides to run a RUNNABLE processes.
• It prevents a timer interrupt from causing a process to yield while it is in swtch.
• Along with the condition lock, it helps prevent wakeup from overlooking a process that is calling sleep but has not finished yielding the CPU.
• It prevents the victim process of kill from exiting and perhaps being re-allocated between kkill’s check of p->pid and setting p->killed.
• It makes kkill’s check and write of p->state atomic.

• 和 p->state 一起，避免从 proc[] 数组中为新进程分配对象时发生竞争。
• 它在进程创建或销毁时将其 “隐藏（conceal）” 起来（译者注：这里的隐藏指的是在创建和销毁进程的过程中涉及修改进程的 state 等字段时通过加锁避免其他进程的并发访问）。
• 子进程退出时，在将其状态设置为 ZOMBIE 和完全让出 CPU 之间有一段窗口期，进程锁用于避免父进程在调用 wait 过程中在这段窗口期中操作子进程。
• 一个进程在让出（yield）CPU 时，在它将自己状态设置为 RUNNABLE 和调用 swtch 完成切换之间有一段窗口期，进程锁用于防止另一个 CPU 上的 scheduler 在这段窗口期之间操作（恢复运行）该进程。
• 它确保只有一个 CPU 上的 scheduler 可以决定运行一个 RUNNABLE 的进程。
• 它可以避免因为定时器中断导致一个正在执行 swtch 进程让出 CPU。
• 与条件锁一起使用，它有助于避免一个消费者进程执行 sleep 但尚未完成交出 CPU 时，因为并发 wakeup 而导致的 “丢失唤醒”。
• 在 kkill 中，检查 p->pid == pid 和设置 p->killed 之间存在一段窗口期，进程锁可以防止在这两步操作之间因为 victim 主动退出导致进程结构体被重新分配给一个新的进程，而这个新进程因为 kill 继续执行设置 p->killed 而被误杀。
• 它确保 kkill 中对 p->state 的检查和改写操作的原子性。

The p->parent field is protected by the global lock wait_lock rather than by p->lock. Only a process’s parent modifies p->parent, though the field is read both by the process itself and by other processes searching for their children. The purpose of wait_lockis to act as the condition lock whenwaitsleeps waiting for any child to exit. An exiting child holds eitherwait_lockorp->lockuntil after it has set its state toZOMBIE, woken up its parent, and yielded the CPU. wait_lockalso serializes concurrentexits by a parent and child, so that the initprocess (which inherits the child) is guaranteed to be woken up from itswait. wait_lock` is a global lock rather than a per-process lock in each parent, because, until a process acquires it, it cannot know who its parent is.

p->parent 字段受全局锁 wait_lock 保护，而不是 p->lock。只有进程的父进程才会修改 p->parent，但该字段既可以被进程本身读取，也可以被其他搜索其子进程的进程读取。wait_lock 的作用是在一个进程调用 wait 等待子进程退出时充当条件锁。正在退出的子进程会持有 wait_lock 或 p->lock，直到它将其自身状态设置为 ZOMBIE、唤醒其父进程并交出 CPU。wait_lock 也串行化了父进程和子进程对 exit 的并发调用，以便保证在 wait 中等待的 init 能被正确地唤醒（当子进程原来的父进程提前退出后会将子进程托付给 init，于是 init 成为子进程的 “继父”）。wait_lock 被定义成一把全局锁，而不是作为每个父进程所自己拥有的锁，因为在进程获取它之前，它无法知道它的父进程是谁。

9.6 现实世界（Real world）

sleep and wakeup are a simple and effective synchronization method, but there are many others; semaphores [5] are an example. The first challenge in all of them is to avoid the “lost wakeups” problem we saw at the beginning of the chapter. The original Unix kernel’s sleep simply disabled interrupts, which sufficed because Unix ran on a single-CPU system. Because xv6 runs on multiprocessors, it adds an explicit lock to sleep. FreeBSD’s msleep takes the same approach. Plan 9’s sleep uses a callback function that runs with the scheduling lock held just before going to sleep; the function serves as a last-minute check of the sleep condition, to avoid lost wakeups. The Linux kernel’s sleep uses an explicit process queue, called a wait queue, instead of a wait channel; the queue has its own internal lock.

sleep 和 wakeup 是一种简单有效的同步方法，当然还有许多其他方法; “信号量（semaphore）” [5] 是一个例子。所有这些方法中的第一个挑战是避免我们在本章开头看到的 “丢失唤醒（lost wakeups）” 问题。早期 Unix 内核的 sleep 实现只是禁用中断就足够了，因为当时 Unix 只在单处理器系统上运行。但 xv6 需要在多处理器系统上运行，所以它在 sleep 的实现中添加了显式的上锁操作（译者注：即 acquire(&p->lock)）。FreeBSD 的 msleep 采用相同的方法。Plan 9 的 sleep 使用一个回调函数，该函数在进入睡眠状态之前持有调度锁并运行；该函数用作睡眠条件的最后一刻检查，以避免丢失唤醒。Linux 内核的 sleep 使用一个显式进程队列，称为 “等待队列（wait queue）”，而不是等待通道；该队列有自己的内部锁。

Scanning the entire set of processes in wakeup is inefficient. A better solution is to replace the chan in both sleep and wakeup with a data structure that holds a list of processes sleeping on that structure, such as Linux’s wait queue. Plan 9’s sleep and wakeup call that structure a rendezvous point. Many thread libraries refer to the same structure as a condition variable; in that context, the operations sleep and wakeup are called wait and signal. All of these mechanisms share the same flavor: the sleep condition is protected by some kind of lock dropped atomically during sleep.

在 wakeup 中扫描所有进程是效率低下的。更好的解决方案是将 sleep 和 wakeup 中的 chan 替换为一个数据结构并将在该结构上休眠的进程列表维护在这个结构中，譬如 Linux 中的 “等待队列（wait queue）”。Plan 9 的 sleep 和 wakeup 将该结构称为 “汇合点（rendezvous point）”。许多线程库将类似的结构称为 “条件变量（condition variable）”；此时，sleep 和 wakeup 操作分别称为 wait 和 signal。所有这些方案的思路都类似：在睡眠期间维持睡眠的条件都要受到某种原子释放的锁的保护。

xv6’s wakeup wakes up all processes that are waiting on a particular wait channel. If there are more than one of them, they will all try to acquire the condition lock and re-check the condition; in many cases only one will be able to do anything useful (e.g., read all the data waiting in a pipe). The rest will find the condition is no longer true and go back to sleep; it was a waste of CPU time to wake them up. As a result, most condition variable designs provide two primitives: signal, which wakes up one of the processes waiting for the condition variable, and broadcast, which wakes up all of them.

xv6 的 wakeup 函数会唤醒所有在特定等待通道上等待的进程。如果存在多个进程，它们都会尝试获取条件锁并重新检查条件；很多情况下，只有一个进程能够执行有用的操作（例如，读取管道中所有等待的数据）。其余进程会发现条件不再成立，然后重新进入睡眠状态；唤醒它们纯粹是浪费 CPU 时间。因此，大多数条件变量设计都提供了两种原语：signal，用于唤醒等待条件变量的某个进程；broadcast，用于唤醒所有进程。

Forcibly killing processes poses some problems. For example, a killed process may be deep inside the kernel sleeping, and unwinding its stack requires care, since each function on the call stack may need to do some clean-up. Some languages help out by providing an exception mechanism, but not C. Furthermore, there are other events that can cause a sleeping process to be woken up, even though the event it is waiting for has not happened yet. For example, when a Unix process is sleeping, another process may send a signal to it. In this case, the process will return from the interrupted system call with the value -1 and with the error code set to EINTR. The application can check for these values and decide what to do. Xv6 doesn’t support signals and this complexity doesn’t arise.

强制终止进程会带来一些问题。例如，一个被杀死的进程的休眠点可能发生在内核的多次函数嵌套调用中，而从睡眠的地方逐层退出返回需要非常小心，因为调用栈上的每个函数都可能需要进行一些清理工作。有些语言提供了异常机制来解决这个问题，但 C 语言没有。此外，唤醒休眠进程的可能不是它正在等待的事件，而是其他事件。例如，当一个 Unix 进程正在休眠时，另一个进程可能会向它发送一个 “信号（signal）”。在这种情况下，该进程将从中断的系统调用返回，返回值为 -1，错误代码设置为 EINTR。应用程序可以检查这些值并决定如何处理。xv6 不支持信号，因此不考虑这种复杂性。

Xv6’s support for kill is not entirely satisfactory: there are sleep loops which probably should check for p->killed. A related problem is that, even for sleep loops that check p->killed, there is a race between sleep and kill; the latter may set p->killed and try to wake up the victim just after the victim’s loop checks p->killed but before it calls sleep. If this problem occurs, the victim won’t notice the p->killed until the condition it is waiting for occurs. This may be quite a bit later or even never (e.g., if the victim is waiting for input from the console, but the user doesn’t type any input).

xv6 对 kill 的支持并不完全令人满意：代码中有些包裹 sleep 的循环会检查 p->killed。与之相关的是，即使存在这些检查 p->killed 的循环，sleep 和 kill 之间也依然存在竞争；在 victim 的循环内部，在检查 p->killed 之后和调用 sleep 之前存在一个窗口期，假设 kill 恰好在这个窗口期中设置了 p->killed 并尝试唤醒 victim 进程（译者注：kill 并不会实际唤醒 victim，它只是设置 p->state = RUNNABLE）。这种情况一旦出现，victim 将无法立即观察到 p->killed 被设置这个条件成立（因为它已经检查过一次），victim 只会进入睡眠等待被唤醒。这可能要等相当长一段时间，甚至永远不会发生（例如，如果 victim 正在等待的是来自控制台的输入，但用户一直没有输入任何内容）。

9.7 练习（Exercises）

1. Implement counting semaphores in xv6. Choose a few of xv6’s uses of sleep and wakeup and replace them with semaphores. Judge the result.

1. 在 xv6 中实现计数信号量。选择 xv6 中一些使用 sleep 和 wakeup 的地方，用信号量替换它们。看看结果。

2. Can you implement a variant of sleep() that takes just one argument, the channel, and doesn’t need a lock argument?

2. 你能修改一下 sleep()？让它只接受一个参数，即通道，而不需要那个锁参数。

3. Fix the race mentioned above between kill and sleep, so that a kill that occurs after the victim’s sleep loop checks p->killed but before it calls sleep results in the victim abandoning the current system call.

3. 修复上面提到的 kill 和 sleep 之间的竞争，以便在 victim 的睡眠循环中检查 p->killed 之后但在调用 sleep 之前发生的 kill 会导致 victim 放弃当前的系统调用。

4. Design a plan so that every sleep loop checks p->killed so that, for example, a process that is in the virtio driver can return quickly from the while loop if it is killed by another process.

4. 设计一个计划，以便每个睡眠循环检查 p->killed，这样，如果 virtio 驱动程序中的进程被另一个进程杀死，它可以从 while 循环快速返回。
