第 2 章 操作系统组织（Chapter 2 Operating system organization）

A key requirement for an operating system is to support several activities at once. For example, one might use the fork and exec system calls from Chapter 1 to start both a compiler and a text editor as processes. The operating system must time-share resources such as CPUs and memory among these processes. The operating system must also arrange for isolation between the processes. If one process has a bug and malfunctions, it shouldn’t affect unrelated processes. Complete isolation, however, is too strong, since it should be possible for processes to intentionally interact; pipelines are an example. Thus an operating system must fulfill three requirements: multiplexing, isolation, and interaction.

对于一个操作系统来说，一个关键的需求是要同时支持多个 “活动（activity）”。例如，可以使用第 1 章中描述的系统调用 fork 和 exec 来启动编译器和文本编辑器两个进程。操作系统必须在这些进程之间采用 分时（time-share） 的方式共享 CPU 和内存等资源。操作系统还必须确保进程之间的 隔离性（isolation）。如果一个进程的实现有问题导致了一些非法操作，它也不应该影响那些和它无关的其他进程。当然，也没有必要实现完全的隔离，进程之间有时候也有交互的需要；管道就是一个例子。因此，操作系统必须满足三个需求：“复用（multiplexing）”、“隔离（isolation）” 和 “交互（interaction）”。

This chapter provides an overview of how operating systems are organized to achieve these three requirements. It turns out there are many ways to do so, but this text focuses on mainstream designs centered around a monolithic kernel, which is used by many Unix operating systems. This chapter also provides an overview of an xv6 process, the unit of isolation in xv6.

本章概述了如何设计操作系统来实现这三个要求。事实证明，有很多方法可以做到这一点，但是本文侧重于介绍主流的 “宏内核（monolithic kernel）” 设计理念，许多 Unix 操作系统都采用了这种设计方式。本章还概述了 xv6 中的 “进程（process）”（它是 xv6 中实现隔离的基本单元）。

Xv6 runs on a multi-core RISC-V microprocessor (By “multi-core” this text means multiple CPUs that share memory but execute in parallel, each with its own set of registers. This text sometimes uses the term multiprocessor as a synonym for multi-core, though multiprocessor can also refer more specifically to a computer with several distinct processor chips.), and much of its low-level functionality (for example, its process implementation) is specific to RISC-V. RISC-V is a 64-bit CPU, and xv6 is written in “LP64” C, which means long (L) and pointers (P) in the C programming language are 64 bits, but an int is 32 bits. This book assumes the reader has done a bit of machine-level programming on some architecture, and will introduce RISC-V-specific ideas as they come up. The user-level ISA [2] and privileged architecture [3] documents are the complete specifications. You may also refer to “The RISC-V Reader: An Open Architecture Atlas” [15].

xv6 支持 多核(multi-core) RISC-V 微处理器 (本文中的 “多核（multi-core）” 是指多个 CPU 共享内存且同时并发运行，每个 CPU 都有各自的寄存器组。本文有时使用 “多处理器（multiprocessor）” 作为 “多核” 的同义词，但 “多处理器” 有时更特指一台计算机具有多个不同的处理器芯片。)，它的许多底层功能（例如，它的进程实现）是特定于 RISC-V 的。运行 xv6 的 RISC-V 处理器是 64 位的，xv6 用 C 语言编写，且编译时采用 “LP64” 方式，这意味着 C 语言中的 long（L）类型的变量和指针（P）变量都是 64 位长度，但 int 类型变量是 32 位的。这本书假设读者已经在一些架构上具备一些机器指令级别（译者注：即采用汇编语言）编程的经验，本文在涉及相关内容时会适当介绍一些 RISC-V 相关的知识。完整的 ISA 规范请参考用户级别（非特权） ISA 手册 [2] 和特权 ISA 手册 [3]。另一个有用的参考文献是 “The RISC-V Reader: An Open Architecture Atlas” [15]。

The CPU in a complete computer is surrounded by support hardware, much of it in the form of I/O interfaces. Xv6 is written for the support hardware simulated by qemu’s “-machine virt” option. This includes RAM, a ROM containing boot code, a serial connection to the user’s keyboard/screen, and a disk for storage.

作为一个完整的计算机系统，除了 CPU 外还包括其他外围设备硬件，其中大部分外设可以通过 I/O 接口方式访问。xv6 是针对 qemu 的 virt 机器开发的 (所谓 virt 机器是指运行 qemu 模拟器时用 “-machine virt” 选项启动的一种仿真平台) 。这个仿真平台模拟了内存（RAM）、包含引导代码的 ROM、一个连接了用户键盘和屏幕的串口，以及一个支持持久存储的磁盘。

2.1 抽象物理资源（Abstracting physical resources）

The first question one might ask when encountering an operating system is why have it at all? That is, one could implement the system calls in Figure 1.2 as a library, with which applications link. In this plan, each application could even have its own library tailored to its needs. Applications could directly interact with hardware resources and use those resources in the best way for the application (e.g., to achieve high or predictable performance). Some operating systems for embedded devices or real-time systems are organized in this way.

当人们初次接触操作系统概念时，可能会问的第一个问题是我们为什么需要它？我们完全可以将图 1.2 中的系统调用实现为一个库，应用程序链接这个库就好了。如果按照这个思路更进一步，每个应用程序甚至可以根据自己的需求定制自己的库。应用程序可以直接与硬件资源交互，并从应用角度出发以各自最佳的方式使用这些资源（例如，实现高性能或可预期的性能）。（现实中）一些针对嵌入式设备或实时系统设计的操作系统就是这样组织的。

The downside of this library approach is that, if there is more than one application running, the applications must be well-behaved. For example, each application must periodically give up the CPU so that other applications can run. Such a cooperative time-sharing scheme may be OK if all applications trust each other and have no bugs. It’s more typical for applications to not trust each other, and to have bugs, so one often wants stronger isolation than a cooperative scheme provides.

采用这种库函数方式实现操作系统的缺点是，如果有多个应用程序在运行，这些应用程序必须要仔细设计。例如，每个应用程序必须定期放弃处理器，以便其他应用程序能够有机会运行。如果所有应用程序都相互信任并且没有错误，这种基于 协同（cooperative） 的 “分时（time-sharing）” 方案可能是可行的。然而更常见的情况是，应用程序之间互不了解且具体实现中不可避免会出现问题（译者注：所谓问题最简单的例子就是出现诸如死循环导致不能定期放弃处理器），所以人们通常希望采用比 “协同” 更好的方法实现隔离。

To achieve strong isolation it’s helpful to forbid applications from directly accessing sensitive hardware resources, and instead to abstract the resources into services. For example, Unix applications interact with storage only through the file system’s open, read, write, and close system calls, instead of reading and writing the disk directly. This provides the application with the convenience of pathnames, and it allows the operating system (which provides the interface) to manage the disk. Even if isolation is not a concern, programs that interact intentionally (or just wish to keep out of each other’s way) are likely to find a file system a more convenient abstraction than direct use of the disk.

为了实现更好的隔离，最好禁止应用程序直接访问敏感的硬件资源，代之以将对资源的访问抽象为服务。例如，Unix 上的应用程序只能通过文件系统提供的系统调用，诸如 open、read、write 和 close 访问存储，而不是直接读写磁盘。这些系统调用为应用程序提供了方便实用的路径名（来访问磁盘上的数据），而将具体对磁盘的管理工作交给了操作系统（作为接口的提供者）。即使不考虑隔离问题，需要交互的程序（如果只是希望它们之间不会互相干扰）可能会发现通过文件系统访问磁盘比直接使用磁盘会更方便。

Similarly, Unix transparently switches hardware CPUs among processes, saving and restoring register state as necessary, so that applications don’t have to be aware of time-sharing. This transparency allows the operating system to share CPUs even if some applications are in infinite loops.

同样，Unix 在进程之间透明地切换硬件处理器，根据需要保存和恢复寄存器状态，这样应用程序就不必意识到 “分时共享（time-sharing）” 的存在。这种透明性允许操作系统（为进程）公平地分享处理器，即使有些应用程序会处于无限循环中。

As another example, Unix processes use exec to build up their memory image, instead of directly interacting with physical memory. This allows the operating system to decide where to place a process in memory; if memory is tight, the operating system might even store some of a process’s data on disk. exec also provides users with the convenience of a file system to store executable program images.

另一个例子是，Unix 进程使用 exec 来创建它们的（虚拟）内存空间，而不是让程序直接访问物理内存。最终将由操作系统来决定一个进程所使用的物理内存；如果内存很紧张，操作系统甚至可以将一个进程的部分数据暂存在磁盘上。exec 还给用户提供了一种便利，即我们可以通过文件系统将程序保存在磁盘上，只有在需要运行它的时候再将程序从磁盘上加载到内存中。

Many forms of interaction among Unix processes occur via file descriptors. Not only do file descriptors abstract away many details (e.g., where data in a pipe or file is stored), they are also defined in a way that simplifies interaction. For example, if one application in a pipeline exits or fails, the kernel automatically generates an end-of-file signal for the next process in the pipeline.

Unix 进程之间的许多交互都是通过 “文件描述符（file descriptors）” 实现的。文件描述符不仅抽象了许多细节（例如，管道或文件中的数据实际存储在哪里），还简化了进程之间交互的方式。譬如，当程序关闭管道或者管道操作失败时，内核会自动为管道另一端的进程产生 “文件结束（end-of-file）” 信号。

The system-call interface in Figure 1.2 is carefully designed to provide both programmer convenience and the possibility of strong isolation. The Unix interface is not the only way to abstract resources, but it has proved to be a good one.

图 1.2 中的系统调用接口是精心设计的产物，既为程序员提供了便利，又为实现强有力的隔离提供了可能性。Unix 接口不是抽象资源的唯一方案，但它已经被证明是一个非常好的方案。

2.2 用户模式，管理员模式和系统调用（User mode, supervisor mode, and system calls）

Strong isolation requires a hard boundary between applications and the operating system. Applications shouldn’t be allowed to disturb the operation of the operating system or other programs, even if the application has a bug or is malicious. To achieve strong isolation, the operating system must arrange that applications cannot modify (or even read) the operating system’s data structures and instructions and that applications cannot access other processes’ memory.

“强隔离（strong isolation）” 需要在应用程序和操作系统之间建立一个明显的边界。我们不希望一个应用程序的错误操作（无论是有意还是无意）会影响操作系统或其他应用程序。要达到强隔离的目标，操作系统必须保证应用程序不能修改（甚至读取）操作系统的数据结构和指令，以及确保这个应用程序不能访问其他进程的内存。

CPUs provide hardware support for strong isolation. For example, RISC-V has three privilege levels which constrain what code can do: machine mode, supervisor mode, and user mode. Instructions executing in machine mode have full privilege; a CPU starts in machine mode. Machine mode is mostly intended for setting up the computer during boot. Xv6 executes briefly in machine mode and then changes to supervisor mode.

CPU 为实现强隔离从硬件层面提供了支持。例如，RISC-V 的 CPU 有三种 “特权级别（privilege level）”：机器模式（machine mode）、管理员模式（supervisor mode） 和 用户模式（user mode）。在机器模式下执行指令时权限最大；CPU 上电后首先运行在机器模式下。机器模式主要用于在计算机启动过程中执行配置操作。xv6 在机器模式下执行很少的几行代码，随后就将处理器切换为管理员模式。

In supervisor mode the CPU is allowed to execute privileged instructions: for example, enabling and disabling interrupts, reading and writing the register that holds the address of the page table, etc. If an application in user mode attempts to execute a privileged instruction, then the CPU doesn’t execute the instruction, but “traps” to special code in supervisor mode that can terminate the application. Figure 1.1 in Chapter 1 illustrates this organization. An application can execute only user-mode instructions (e.g., adding numbers, etc.) and is said to be running in user space, while the software in supervisor mode can also execute privileged instructions and is said to be running in kernel space. The software running in kernel space (or in supervisor mode) is called the kernel.

在管理员模式下，CPU 被允许执行 特权指令（privileged instructions）：例如，启用和禁用中断、对保存页表地址的寄存器进行读取和写入等。如果在用户模式下应用程序试图执行特权指令，那么 CPU 不仅会拒绝执行，还会将处理器通过 “陷入（trap）” 方式切换到管理员模式并执行一段特殊的代码来终止应用程序。第 1 章中的图 1.1 描述了这种设计。一个应用程序只能执行用户模式下允许执行的指令（例如，对数字求和等），这被称为在 用户空间（user space） 中运行，而处于管理员模式下程序可以执行特权指令，这被称为在 内核空间（kernel space） 中运行。在内核空间（对应 RISC-V 的管理员模式概念）中运行的软件被称为 内核（kernel）。

Applications interact with the kernel via system calls calls such as read. Applications are not allowed to directly call kernel functions or access the kernel’s memory. RISC-V provides the ecall instruction for system calls; it switches the CPU from user to supervisor mode and jumps to a kernel-specified entry point. Once the CPU has switched to supervisor mode, the kernel can then validate the arguments of the system call (e.g., check if the address passed to the system call is part of the application’s memory), decide whether the application is allowed to perform the requested operation (e.g., check if the application is allowed to write the specified file), and then deny it or execute it. It is important that the kernel control the entry point for transitions to supervisor mode; if the application could decide the kernel entry point, a malicious application could, for example, enter the kernel at a point where the validation of arguments is skipped.

应用程序通过系统调用（例如 read）与内核交互。应用程序不允许直接调用内核函数或访问内核内存。RISC-V 为系统调用提供了 ecall 指令；该指令将 CPU 从用户模式切换到管理员模式，并跳转到内核指定的 “入口点（entry point）” 。(译者注：所谓 entry point 可以认为是一条指令的地址，当处理器从用户模式切换到管理员模式时，处理器的 PC 自动跳转到这个地址开始执行内核定义的函数)。一旦 CPU 切换到管理员模式，内核就可以验证系统调用的参数（例如，检查传递给系统调用的地址是否是应用程序内存的一部分），决定是否允许应用程序执行请求的操作（例如，检查是否允许应用程序写入指定的文件），结果无非是拒绝该请求或执行该请求。这个转换到管理员模式后执行的入口点必须由内核来定义，这点非常重要；如果应用程序可以决定内核入口点，那么心存恶意的应用程序就可以跳过参数验证，直接进入内核（执行内核的函数）。

2.3 内核的组织（Kernel organization）

A key design question is what part of the operating system should run in supervisor mode. One possibility is that the entire operating system resides in the kernel, so that the implementations of all system calls run in supervisor mode. This organization is called a monolithic kernel.

有一个关键的设计问题是：操作系统的哪些部分应该在管理员模式下运行。一种可能性是整个操作系统驻留在内核中，这样所有系统调用的实现都以管理员模式运行。这种组织方式被称为 宏内核（monolithic kernel）。

In a monolithic organization the entire operating system consists of a single program running in supervisor mode. One reason this organization is convenient is that the OS designer doesn’t have to divide code into parts that do and do not require supervisor privileges. Furthermore, it is easy for different parts of the operating system to cooperate, since they are parts of a single program. For example, a monolithic kernel might share a disk block cache with the file system and the virtual memory system.

在宏内核方式下，整个操作系统由单个程序组成，运行在管理员模式下。这种运行方式的方便之处在于，操作系统设计人员无需区分操作系统的哪些部分需要运行在管理员模式下，哪些又不需要。此外，由于操作系统的不同部分都属于同一个程序，因此它们之间很容易协作。例如，宏内核可以创建一个磁盘块缓存供文件系统和虚拟内存系统共享使用。

A downside is that monolithic kernels tend to grow large and complex, so that no one developer understands all of the interactions between different parts of the code; this is a recipe for bugs. A bug in the kernel is particularly troublesome because it may cause the entire computer to crash, or cause many applications to malfunction, or make the entire computer vulnerable to security attacks.

宏内核的一个缺点是，它往往会变得庞大而复杂，以至于没有哪个开发人员能够理解代码不同部分之间的所有交互；这很容易滋生 “问题（bug）”。内核中的 bug 尤其麻烦，因为它可能导致整个计算机崩溃，或导致许多应用程序无法正常工作，甚至使整个计算机容易受到安全攻击。

A microkernel aims to reduce the incidence of bugs in the kernel. The idea is to put an absolute minimum of functionality in the kernel itself, so that little code executes in supervisor mode, and so that the kernel is easy to understand and analyze for correctness. The bulk of the operating system runs as user-level server processes. For example, the file system code would execute as a server process, in user mode rather than supervisor mode.

微内核（microkernel） 旨在降低内核中错误的发生率。其理念是将极少的功能放入内核中，以便只有极少量的代码在管理员模式下执行，从而易于理解和分析内核的正确性。操作系统的大部分代码以用户态服务进程的形式运行。例如，文件系统代码将作为服务器进程在用户模式下执行，而不是在管理员模式下。

Figure 2.1 illustrates this microkernel design. In the figure, the file system runs as a user-level server process. To allow applications to interact with the file server, the kernel provides an inter-process communication mechanism to send messages from one user-mode process to another. For example, if an application like the shell wants to read or write a file, it sends a message to the file server and waits for a response.

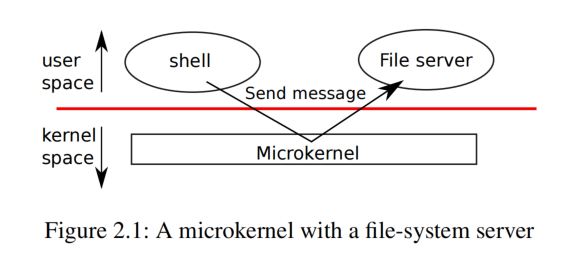

图 2.1 展示了这种微内核设计。图中，文件系统作为用户态服务进程运行。为了允许应用程序与文件服务器交互，内核提供了一种进程间通信机制，用于在用户模式进程之间发送消息。例如，像 shell 这样的应用程序如果想要读取或写入文件，它需要向文件服务器发送消息并等待响应。

In a microkernel, the kernel interface consists of a few low-level functions for starting applications, sending messages, accessing device hardware, etc. This organization allows the kernel to be relatively simple, as most of the operating system resides in user-level servers.

在微内核中，内核接口由一些底层函数组成，包括启动应用程序、发送消息、访问设备硬件等。这种组织方式使内核相对简单，因为操作系统的大部分代码都运行在用户态层面的服务器中。

In the real world, both monolithic kernels and microkernels are popular. Many Unix kernels are monolithic. For example, Linux has a monolithic kernel, although some OS functions run as user-level servers (e.g., the window system). Linux delivers high performance to OS-intensive applications, partially because the subsystems of the kernel can be tightly integrated.

在现实世界中，宏内核和微内核都很流行。许多 Unix 内核都是宏内核的。例如，Linux 就是采用的宏内核方式，除了一部分操作系统功能作为用户态服务器运行（例如窗口系统）。Linux 能够支持实现高性能的 “操作系统密集型（OS-intensive）” 应用程序，部分原因就是因为其内核中的子系统之间可以紧密集成。

Operating systems such as Minix, L4, and QNX are organized as a microkernel with servers, and have seen wide deployment in embedded settings. A variant of L4, seL4, is small enough that it has been verified for memory safety and other security properties [8].

Minix、L4 和 QNX 等操作系统则采用微内核架构，大部分功能以服务器形式提供，它们在嵌入式环境中得到了广泛的部署。其中，L4 的一个变体 seL4 的体积足够小，并且已通过内存安全和其他安全特性的验证 [8]。

There is much debate among developers of operating systems about which organization is better, but there is no conclusive evidence one way or the other. Furthermore, it depends much on what “better” means: faster performance, smaller code size, reliability of the kernel, reliability of the complete operating system (including user-level services), etc.

至于究竟那种组织方式更好，在操作系统开发者之间存在很多争论，目前尚无定论。此外，这很大程度上取决于如何理解什么是 “更好”：这涉及系统更倾向于实现更快的性能、更小的代码大小、更可靠的内核，还是更多考虑整个操作系统（包括用户级别服务）的可靠性等等方面的问题。

There are also practical considerations that may be more important than the question of which organization. Some operating systems have a microkernel but run some of the user-level services in kernel space for performance reasons. Some operating systems have monolithic kernels because that is how they started and there is little incentive to move to a pure microkernel organization, because new features may be more important than rewriting the existing operating system to fit a microkernel design.

还有一些需要实际考虑的因素可能比单纯选择哪种组织方式更重要。有些操作系统采用微内核，但出于性能考虑，仍然会将部分用户级别服务放在内核空间运行。有些操作系统采用宏内核架构，仅仅是因为它们最初就是这样设计的，而且几乎没有什么动力再转向纯粹的微内核架构，与其重写现有操作系统以适应微内核设计还不如在开发新功能上多花点精力。

From this book’s perspective, microkernel and monolithic operating systems share many key ideas. They implement system calls, they use page tables, they handle interrupts, they support processes, they use locks for concurrency control, they implement a file system, etc. This book focuses on these core ideas.

从本书的角度来看，微内核和宏内核的操作系统有许多共同的核心思想。它们都实现了系统调用，使用了页表，处理了中断，支持进程，使用锁进行并发控制，并且都实现了文件系统等等。本书将重点介绍这些核心思想。

Xv6 is implemented as a monolithic kernel, like most Unix operating systems. Thus, the xv6 kernel interface corresponds to the operating system interface, and the kernel implements the complete operating system. Since xv6 doesn’t provide many services, its kernel is smaller than some microkernels, but conceptually xv6 is monolithic.

与大多数 Unix 操作系统一样，xv6 采用了宏内核的组织方式。因此，xv6 内核的接口就是操作系统的接口，内核实现了完整的操作系统。由于 xv6 提供的服务较少，其内核比一些微内核更小，但从概念上讲，xv6 仍然属于宏内核。

2.4 代码讲解：xv6 的组织（Code: xv6 organization）

The xv6 kernel source is in the kernel/ sub-directory. Figure 2.2 lists the files, divided into the major areas of kernel responsibility: starting the system (booting), creating and controlling processes, handling traps (interrupts and system calls), allocating memory and configuring virtual addresses, controlling devices, and managing the file-system.

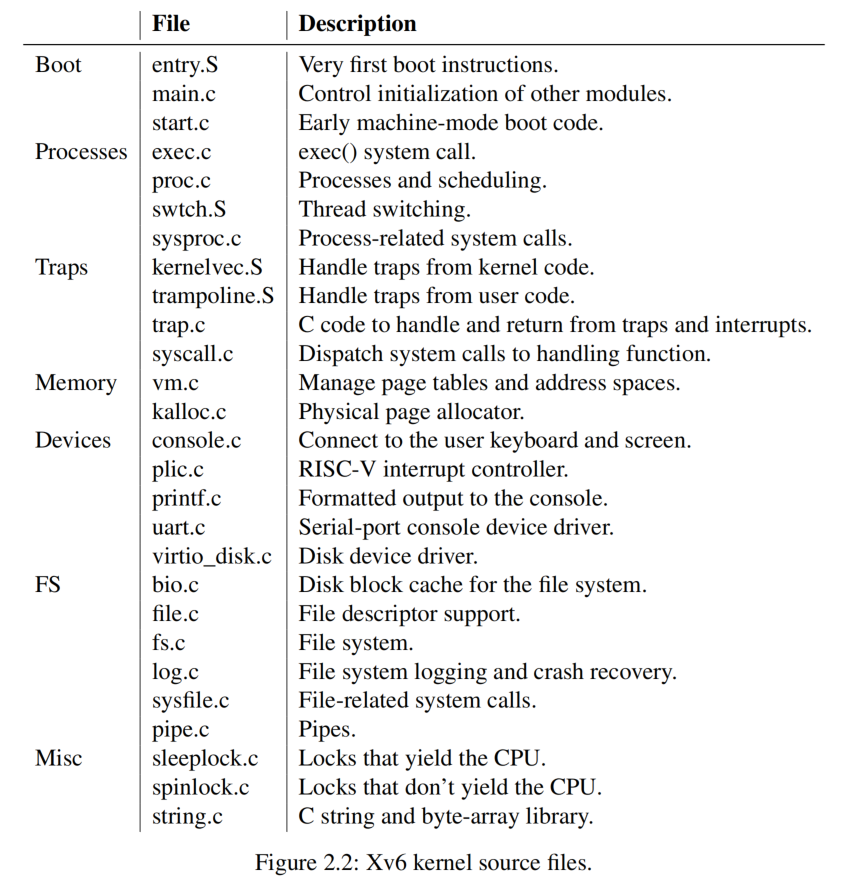

xv6 内核源代码位于 kernel/ 子目录中。图 2.2 列出了这些文件，并按内核的主要职责进行划分，这包括：启动系统（引导）、创建和控制进程、处理 “陷阱（traps）”（中断和系统调用）、分配内存和配置虚拟地址、控制设备以及管理文件系统。

2.5 进程概述（Process overview）

The unit of isolation in xv6 (as in other Unix operating systems) is a process. The process abstraction prevents one process from wrecking or spying on another process’s memory, CPU, file descriptors, etc. It also prevents a process from wrecking the kernel itself, so that a process can’t subvert the kernel’s isolation mechanisms. The kernel must implement the process abstraction with care because a buggy or malicious application may trick the kernel or hardware into doing something bad (e.g., circumventing isolation). The mechanisms used by the kernel to implement processes include the user/supervisor mode flag, address spaces, and time-slicing of threads.

（和其他 Unix 操作系统一样）xv6 中实现隔离的基本单元是一个 进程（process）。进程是一个抽象的概念，一个进程无法访问（更谈不上破坏）另一个进程所拥有的内存、CPU、文件描述符等。一个进程也无法破坏内核本身，自然这样一个进程就不能突破内核的隔离机制。内核必须小心地实现进程这个抽象设计，因为一个有缺陷或恶意的应用程序可能会欺骗内核或硬件做坏事（例如，绕过隔离机制）。内核用来实现进程的机制包括区分用户模式和管理员模式，引入地址空间的概念以及对线程的运行划分时间片。

To help enforce isolation, the process abstraction provides the illusion to a program that it has its own private machine. A process provides a program with what appears to be a private memory system, or address space, which other processes cannot read or write. A process also provides the program with what appears to be its own CPU to execute the program’s instructions.

为了加强隔离，进程这种抽象设计给程序提供了一种错觉，即好像它拥有自己专有的机器。一个程序似乎拥有一块私有的内存区域，也叫作 地址空间（address space），其他进程对它不能读取也不能写入。这个程序还拥有自己的 CPU 来执行它的指令。

Xv6 uses page tables (which are implemented by hardware) to give each process its own address space. The RISC-V page table translates (or “maps”) a virtual address (the address that an RISC-V instruction manipulates) to a physical address (an address that the CPU sends to main memory).

xv6 使用 “页表（page tables）”（在硬件的帮助下）为每个进程提供自己的地址空间。RISC-V 的页表将 虚拟地址（virtual address）（RISC-V 的指令操作的地址）“翻译（translate）”（或 “映射（map）”）为 物理地址（physical address）（CPU 芯片发送到主存储器的地址）。（译者注：页表是内存中的一个数据结构，存放了虚拟地址和物理地址之间的对应关系，也就是这里说的映射的概念。当 CPU 执行指令时，由专门的 MMU 硬件单元根据页表中定义的映射关系，将指令中的虚拟地址转换成物理地址并进而访问实际的物理内存。）

Xv6 maintains a separate page table for each process that defines that process’s address space. As illustrated in Figure 2.3, an address space includes the process’s user memory starting at virtual address zero. Instructions come first, followed by global variables, then the stack, and finally a “heap” area (for malloc) that the process can expand as needed. There are a number of factors that limit the maximum size of a process’s address space: pointers on the RISC-V are 64 bits wide; the hardware uses only the low 39 bits when looking up virtual addresses in page tables; and xv6 uses only 38 of those 39 bits. Thus, the maximum address is 2³⁸ − 1 = 0x3fffffffff, which is MAXVA (0899). At the top of the address space xv6 places a trampoline page (4096 bytes) and a trapframe page. Xv6 uses these two pages to transition into the kernel and back; the trampoline page contains the code to transition in and out of the kernel, and the trapframe is where the kernel saves the process’s user registers, as Chapter 4 explains.

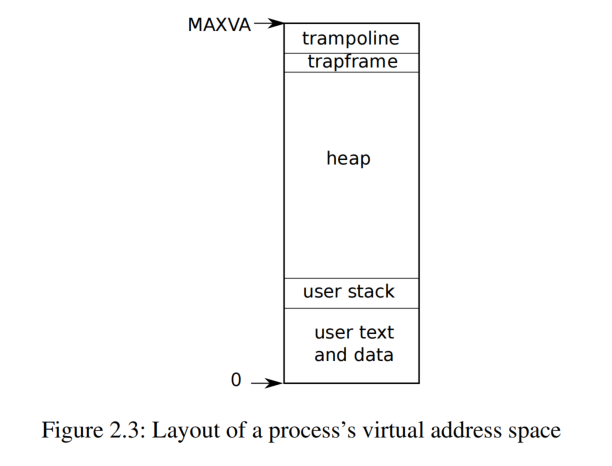

xv6 为每个进程维护一个单独的页表，定义了该进程的地址空间。如图 2.3 所示是一个进程的地址空间，它对应了进程的 用户内存（user memory），这块内存以虚拟内存地址 0 作为起始地址。向上（虚拟地址增加的方向），首先存放的是指令，然后是全局变量，接着是栈区，最后是一个 “堆” 区（用于 malloc）供进程根据需要进行扩展。有许多因素限制了进程地址空间的最大范围：RISC-V 的指针宽度是 64 位；硬件在页表中查找虚拟地址时只使用低 39 位；xv6 只使用了这 39 位中的 38 位。因此，最大地址是 2³⁸ - 1 = 0x3fffffffff，即代码中定义的常量 MAXVA（0899）。在地址空间的顶部，xv6 为 trampoline 和 trapframe 各映射了一个 “页（page）”（大小为 4096 个字节），xv6 利用这两个页实现用户态和内核态之间的切换，trampline 页中包含了用于内核态切换时会执行的指令，trapframe 页会被内核用于保存进程的用户寄存器，有关这部分的详细内容将在第 4 章中进一步解释。

The xv6 kernel maintains many pieces of state for each process, which it gathers into a struct proc (2034). A process’s most important pieces of kernel state are its page table, its kernel stack, and its run state. We’ll use the notation p->xxx to refer to elements of the proc structure; for example, p->pagetable is a pointer to the process’s page table.

xv6 内核为每个进程维护许多信息，所有的这些内容都定义在一个结构体 struct proc (2034) 中。一个进程中最重要的内核信息包括它的页表、内核栈区和运行状态。我们将使用 p->xxx 来引用 proc 结构体中的属性；例如，p->pagetable 是一个指向该进程页表的指针。

At this point, please read kernel/proc.h, which defines struct proc. The xv6 code is more important for you to understand than this book; you should prioritize the code, and consult this book as needed to clarify the code. The purpose of some of the code may not be apparent at first, but further reading and searching the code will help. Feel free to explore and modify the code.

此时，请阅读 kernel/proc.h，其中定义了 struct proc。xv6 代码比本书更重要；您应该优先阅读代码，并根据需要参考本书来理解代码。某些代码的用途可能一开始并不明显，但进一步阅读和搜索代码会有所帮助。请大胆探索和修改代码。

Each process has a thread of control (or thread for short) that holds the state needed to execute the process. At any given time, a thread might be executing on a CPU, or suspended (not executing, but capable of resuming executing in the future). To switch a CPU between processes, the kernel suspends the thread currently running on that CPU and saves its state, and restores the state of another process’s previously-suspended thread. Much of the state of a thread (local variables, function call return addresses) is stored on the thread’s stacks. Each process has two stacks: a user stack and a kernel stack (p->kstack). When the process is executing user instructions, only its user stack is in use, and its kernel stack is empty. When the process enters the kernel (for a system call or interrupt), the kernel code executes on the process’s kernel stack; while a process is in the kernel, its user stack still contains saved data, but isn’t actively used. A process’s thread alternates between actively using its user stack and its kernel stack. The kernel stack is separate (and protected from user code) so that the kernel can execute even if a process has wrecked its user stack.

每个进程都对应一个 “控制流（thread of control）”（或简称 线程(thread)），并维护着进程执行过程中所需的上下文信息。在任意一个时间点上，一个线程要么是在处理器上执行，要么挂起（不执行，但稍后能够恢复继续执行）。为了在处理器上交替执行进程，内核会挂起当前在处理器上运行的线程，保存它的上下文，然后恢复另一个当前被挂起的进程所对应的线程的上下文。线程的大部分状态（包括本地变量、函数调用返回地址）存储在线程的栈上。每个进程有两个栈：一个用户栈和一个内核栈（p->kstack）。当进程执行用户指令时，只使用它的用户栈，它的内核栈是空的。当进程进入内核（由于系统调用或中断）时，内核代码使用进程的内核栈；当一个进程进入内核态后，它的用户栈仍然包含保存的数据，只是不被内核指令使用。进程的线程交替使用它的用户栈和内核栈。内核栈是独立的（用户代码不能访问），因此即使一个进程搞坏了它的用户栈，内核依然可以正常运行。

A process’s user code can make a system call by executing the RISC-V ecall instruction. This instruction switches to supervisor mode and changes the program counter to a kernel-defined entry point. The code at the entry point switches to the process’s kernel stack and executes the kernel instructions that implement the system call. When the system call completes, the kernel returns to user space by executin the sret instruction, which switches to user mode and resumes executing user instructions just after the system call instruction. A process’s thread can “block” in the kernel to wait for I/O, and resume where it left off when the I/O has finished.

一个进程的用户态代码可以通过执行 RISC-V 的 ecall 指令发起系统调用，该指令将处理器切换到管理员模式，并将程序计数器（program counter）更改为内核定义的入口点。入口点的代码执行切换操作使线程转为使用内核栈并开始执行实现系统调用的内核指令，当系统调用完成时，内核通过调用 sret 指令切换回用户模式从而返回用户空间，并从发起系统调用的指令（译者注：即 ecall）后的那条用户指令开始继续恢复执行。一个进程的线程可以在内核中以 “阻塞（block）” 方式等待 I/O，并在 I/O 完成后恢复执行。

p->state indicates whether the process is allocated, ready to run, currently running on a CPU, waiting for I/O, or exiting.

p->state 用于记录当前进程进程的状态是 “已分配（allocated）”、“就绪（ready to run）”、“运行（running）”、“等待 I/O 中（waiting）” 还是 “正在退出（exiting）”。

p->pagetable holds the process’s page table, in the format that the RISC-V hardware expects. Xv6 causes the paging hardware to use a process’s p->pagetable when executing that process in user space. A process’s page table also serves as the record of the addresses of the physical pages allocated to store the process’s memory.

p->pagetable 指向进程的页表，页表中的格式必须符合 RISC-V 硬件所期望的格式。当进程在用户空间执行，xv6 会设置分页硬件使用进程的 p->pagetable。一个进程的页表记录着哪些物理页已分配给该进程。

In summary, a process bundles two design ideas: an address space to give a process the illusion of its own memory, and a thread to give the process the illusion of its own CPU. In xv6, a process consists of one address space and one thread. In real operating systems a process may have more than one thread to take advantage of multiple CPUs.

总之，进程的概念包含了两个设计思想：一个是地址空间的概念，它让进程感觉拥有自己专属的内存；另一个是线程的概念，它让进程感觉拥有自己专属的 CPU。在 xv6 中，一个进程由一个地址空间和一个线程组成。在实际操作系统中，一个进程可能含有多个线程，以充分利用处理器中的多个核。

2.6 代码讲解：启动 xv6，第一个进程以及系统调用（Code: starting xv6, the first process and system call）

To make xv6 more concrete, we’ll outline how the kernel starts and runs the first process. The subsequent chapters will describe the mechanisms that show up in this overview in more detail. Please read kernel/entry.S, kernel/start.c, kernel/main.c, and user/init.c.

为了使读者更具体地了解 xv6，我们将概述内核如何启动和运行第一个进程。后面的章节将更详细地描述这里概述中介绍的机制。请阅读代码：kernel/entry.S, kernel/start.c, kernel/main.c, 以及 user/init.c。

When the RISC-V computer powers on, it initializes itself and runs a boot loader which is stored in read-only memory. The boot loader copies the xv6 kernel into memory at physical address 0x80000000. The reason it places the kernel at 0x80000000 rather than 0x0 is because the address range 0x0:0x80000000 contains I/O devices.

当 RISC-V 计算机上电时，它会初始化自己并运行一个存储在只读内存中的 “引导加载程序（boot loader）”。引导加载程序将 xv6 内核复制到内存中物理地址为 0x80000000 处。它将内核放在 0x80000000 而不是 0x0 的原因是 0x0:0x80000000 这段地址范围被预留用于访问 I/O 设备。

Then the boot loader jumps to xv6 starting at _entry (1006). The RISC-V starts with paging hardware disabled: virtual addresses map directly to physical addresses. The instructions at _entry set up a stack so that xv6 can run C code. Xv6 declares space for this stack, stack0, in the file start.c (1060). The code at _entry loads the stack pointer register sp with the address stack0+4096, the top of the stack, because the stack on RISC-V grows down. Now that the kernel has a stack, _entry calls into C code at start (1064).

然后引导加载程序跳转到 _entry (1006) 开始运行 xv6。启动阶段中 “分页硬件（paging hardware，即 MMU）” 处于禁用模式，也就是说此时虚拟地址直接映射为等值的物理地址。汇编函数 _entry 中首先建立了一个栈，这为在 xv6 中使用 C 语言写代码了做好了准备。xv6在 start.c (1060) 中定义了最初的栈 stack0。由于在 RISC-V 上的栈是向低地址方向扩展，所以在 _entry 中将栈顶地址 stack0+4096 加载到栈指针寄存器 sp 中。现在内核有了栈区，_entry 便可以调用 C 函数 start (1064) 了。

The function start performs some setup that the CPU only allows in machine mode, most crucially programming the clock chip to generate timer interrupts. Then start uses the RISC-V mret instruction to switch to supervisor mode and jump to main (1160). mret requires a bit of setup: start sets the previous privilege mode to supervisor in the register mstatus, sets the destination address to main by writing main’s address into the register mepc, disables virtual address translation in supervisor mode by writing 0 into the page-table register satp, and delegates all interrupts and exceptions to supervisor mode.

函数 start 执行一些仅在机器模式下允许的配置操作，最主要的是对时钟芯片进行编程来产生定时器中断。然后 start 函数通过调用 mret 指令将 CPU 切换到管理员模式并跳转到 main 函数（1160）。在执行 mret 之前需要提前做好如下设置：它在寄存器 mstatus 中将上一个特权模式（译者注：即 mstatus.MPP）设置为管理员模式，此外它通过将 main 函数的地址写入寄存器 mepc 使得处理器返回管理员模式后从 main 恢复执行，它通过向页表寄存器 satp 写入 0 确保管理员模式下虚拟地址转换功能被禁用，并将所有的中断和异常委托（delegate）给管理员模式。

After main (1160) initializes several devices and subsystems, it creates the first process by calling userinit (2327). All newly created processes start executing in the kernel in forkret (2653). As a special case for the first process, forkret calls kexec to load the user program /init.

在 main（1160）初始化多个设备和子系统后，它通过调用 userinit（2327）创建第一个进程。所有新创建的进程都通过 forkret（2653）在内核中开始执行。对于第一个进程，作为特例，forkret 通过调用 kexec 加载了用户程序 /init。

After calling kexec, forkret returns to user space in the /init process. init (7764) creates a new console device file if needed and then opens it as file descriptors 0, 1, and 2. Then it starts a shell on the console. The system is up.

调用 kexec 后，forkret 在 /init 进程中返回到用户空间。init (7764) 会尝试打开一个 “控制台（console）”设备文件，如果该文件不存在就创建一个新的，最终会打开该文件从而得到文件描述符 0、1 和 2 。最后它在控制台上启动一个 shell。系统就这样启动了。

2.7 安全模型（Security Model）

You may wonder how the operating system deals with buggy or malicious code. Because coping with malice is strictly harder than dealing with accidental bugs, it’s reasonable to focus mostly on providing security against malice. Here’s a high-level view of typical security assumptions and goals in operating system design.

您可能想知道操作系统如何处理错误或恶意代码。由于应对恶意代码比处理意外错误更困难，因此在考虑安全问题时将主要精力放在针对恶意代码上是合理的。以下概述是操作系统设计中典型的从安全角度出发的假设和开发目标。

The operating system must assume that a process’s user-level code will do its best to wreck the kernel or other processes. User code may try to dereference pointers outside its allowed address space; it may attempt to execute instructions not intended for user code; it may try to read and write RISC-V control registers; it may try to access device hardware; and it may pass clever values to system calls in an attempt to trick the kernel into crashing or doing something stupid.

操作系统必须假设一个进程的用户态代码随时可能会破坏内核或其他进程。用户代码可能会尝试将指针指向其被允许访问的地址空间之外的任何地方；它可能会尝试执行任何 RISC-V 指令，即使这些指令并非专为用户代码设计；它可能会尝试读写任何 RISC-V 的控制寄存器；它可能会尝试直接访问硬件设备；它还可能会在调用系统调用时通过参数传入一些特殊的值，并尝试利用这些值使内核崩溃或让它执行某些愚蠢的操作。

The kernel’s goal is to restrict each user processe so that it can only access its own user memory, use the 32 general-purpose RISC-V registers, and affect the kernel and other processes in the ways that system calls are intended to allow. The kernel must prevent any other actions. These are typically absolute requirements in kernel design.

内核的目标是限制每个用户进程，使其只能访问自己用户内存上的内容和指令，此外还要限制用户进程只能使用 32 个通用的 RISC-V 寄存器，并只允许它以系统调用允许的方式影响内核和其他进程。内核必须阻止任何其他操作。这通常是内核设计中必须要满足的需求。

Expectations for the kernel’s own code are different. Kernel code is assumed to be written by well-meaning and careful programmers, to be bug-free, and to contain nothing malicious. This assumption affects how we analyze kernel code. For example, there are many internal kernel functions (e.g., the spin locks) that would cause serious problems if kernel code used them incorrectly. We assume, however, that the kernel uses its own functions correctly. At the hardware level, the RISC-V CPU, RAM, disk, etc. are assumed to operate as advertised in the documentation, with no hardware bugs.

对内核自身代码的期望则截然不同。内核代码被假定由善意且细心的程序员编写。内核代码（被假设）应该没有缺陷，当然也不应该含有任何恶意的代码。这一假设会影响我们分析内核代码的方式。例如，许多内核内部函数（例如自旋锁）如果被内核代码错误地使用，当然会导致严重的问题。但我们总是假设内核正确地使用自己的函数。在硬件层面，RISC-V 的 CPU、RAM、磁盘等都按文档中宣传的那样运行，没有任何硬件上的缺陷。

Real life is not so straightforward. It’s difficult to prevent abusive user programs from calling system calls in a way that makes the system unusable by consuming kernel-protected resources: disk space, CPU time, process table slots, etc. It’s usually impossible to write 100% bug-free kernel code or design bug-free hardware; if the writers of malicious user code are aware of kernel or hardware bugs, they will exploit them. Even in mature, widely-used kernels, such as Linux, people often discover previously-unknown vulnerabilities [1]. Finally, the distinction between user and kernel code is sometimes blurred: some privileged user-level processes may provide essential services and effectively be part of the operating system, and in some operating systems privileged user code can insert new code into the kernel (as with Linux’s loadable kernel modules and eBPF).

现实情况并非如此简单。很难阻止滥用系统调用的用户程序通过消耗受内核保护的资源（例如磁盘空间、CPU 时间、进程表槽等）并导致系统不可用。编写 100% 无错误的内核代码或设计 100% 无错误的硬件通常是不可能的；如果恶意用户代码的编写者意识到内核或硬件的错误，他们就会利用这些错误。即使在 Linux 等成熟且广泛使用的内核中，人们也经常会发现以前未知的漏洞 [1]。最后，用户代码和内核代码之间的区别有时很模糊：一些特权用户级进程可能提供必要的服务，并有效地成为操作系统的一部分；而在某些操作系统中，特权用户代码可以将新代码插入内核（例如通过 Linux 的可加载内核模块和 eBPF）。

As a partial defense against kernel bugs, xv6 code includes checks for inconsistencies and unrecoverable errors, and will “panic” in response, by calling panic(). This function prints an error message and halts the system. Panicking is not desirable, but is preferable to continuing execution. Typically a panic results from a kernel bug that causes kernel data to be incorrect or causes the kernel to perform an illegal action such as referencing non-existent memory; in such a situation it is safer to halt execution with panic() than to try to continue in an inconsistent state. A kernel developer would react to a panic by working to identify and fix the underlying code bug.

作为对内核错误的应对措施的一部分，xv6 代码包含对不一致和不可恢复错误的检查，并通过调用 panic() 来处理这些异常（译者注，这里我们称该动作为 “崩溃（Panicking）”）。此函数会打印一条错误消息并暂停系统。虽然这会导致系统崩溃，但总比继续执行要好。通常，崩溃是由内核错误引起的，该错误会导致内核数据不正确或导致内核执行非法操作（例如引用不存在的内存）；在这种情况下，使用 panic() 暂停执行比尝试在不一致的状态下继续执行更安全。内核开发人员要做的是根据崩溃时的输出修复底层代码错误。

2.8 现实世界（Real world）

Most operating systems have adopted the process concept, and most processes look similar to xv6’s. Modern operating systems, however, support several threads within a process, to allow a single process to exploit multiple CPUs. Supporting multiple threads in a process involves quite a bit of machinery that xv6 doesn’t have, often including interface changes (e.g., Linux’s clone, a variant of fork), to control which aspects of a process threads share.

大多数操作系统都采纳了进程的概念，并且大多数操作系统的进程看起来与 xv6 的很像。然而，现代操作系统支持在一个进程中创建多个线程，使得一个进程能够利用多个处理器。在一个进程中支持多个线程涉及许多新的机制以控制一个进程中多个线程之间可以共享哪些内容。这些机制 xv6 并没有实现，包括潜在的接口更改（例如，Linux 下的 clone, 一个 fork 的变体）。

2.9 练习（Exercises）

1. Add a system call to xv6 that returns the amount of free memory available.

1. 为 xv6 增加一个系统调用, 返回当前可用的内存的大小。
